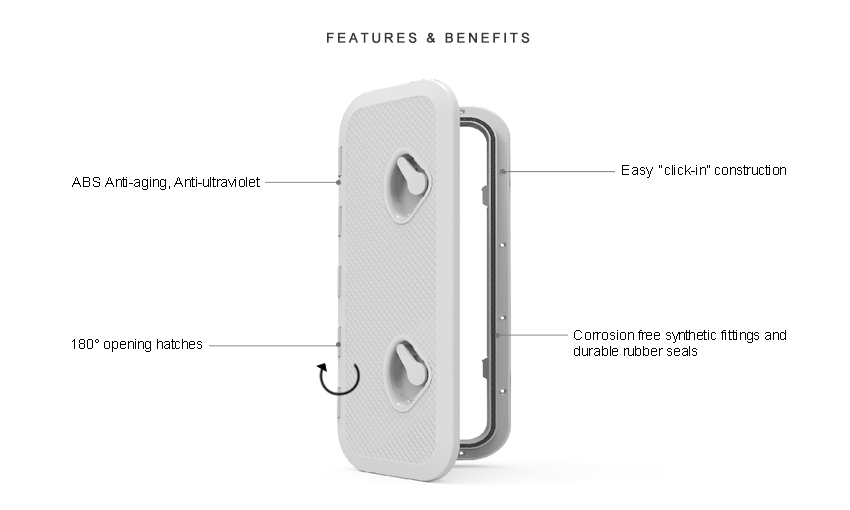

MORE FEATURES & BENEFITS
• ABS Anti-aging, Anti-ultraviolet.
• 180° opening hatches.
• Easy "click-in" construction.
• Corrosion free synthetic fittings and durable rubber seals.
STANDARD CONFIGURATIONS
| Model | H (mm) | L (mm) | h1 (mm) | L1(mm) |
| SFRE1-243-607-01 | 243 | 607 | 168 | 525 |
| SFRE1-315-440-01 | 315 | 440 | 240 | 358 |
| SFRE1-353-606-01 | 353 | 606 | 278 | 524 |
| SFRE1-370-375-01 | 370 | 375 | 295 | 295 |
| SFRE1-460-510-01 | 460 | 510 | 383 | 436 |
SHIPPING INFORMATION
Model | Master Carton Size | Master Carton Weight/Qty | Master Carton Volume |
SFRE1-243-607-01 | 25.2" x 17.91" x 10.91" (64x45.5x27.7 cm) | 18 kg / 10 pcs | 0.081 m³ |
SFRE1-315-440-01 | 18.7" x 18.31" x 13.66" (47.5x46.5x34.7 cm) | 16 kg / 10 pcs | 0.077 m³ |
SFRE1-353-606-01 | 25.2" x 14.17" x 15.16" (64x36x38.5 cm) | 19 kg / 7 pcs | 0.089 m³ |
SFRE1-370-375-01 | 19.49" x 16.14" x 15.87" (49.5x41x40.3 cm) | 17 kg / 10 pcs | 0.082 m³ |
SFRE1-460-510-01 | 21.65" x 13.78" x 18.9" (55x35x48 cm) | 21 kg / 7 pcs | 0.092 m³ |
