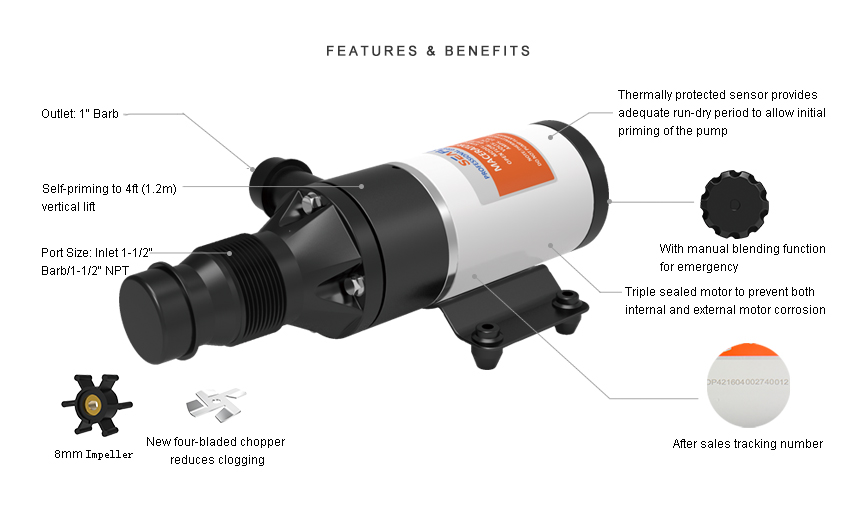

MORE FEATURES & BENEFITS
• Completely new design

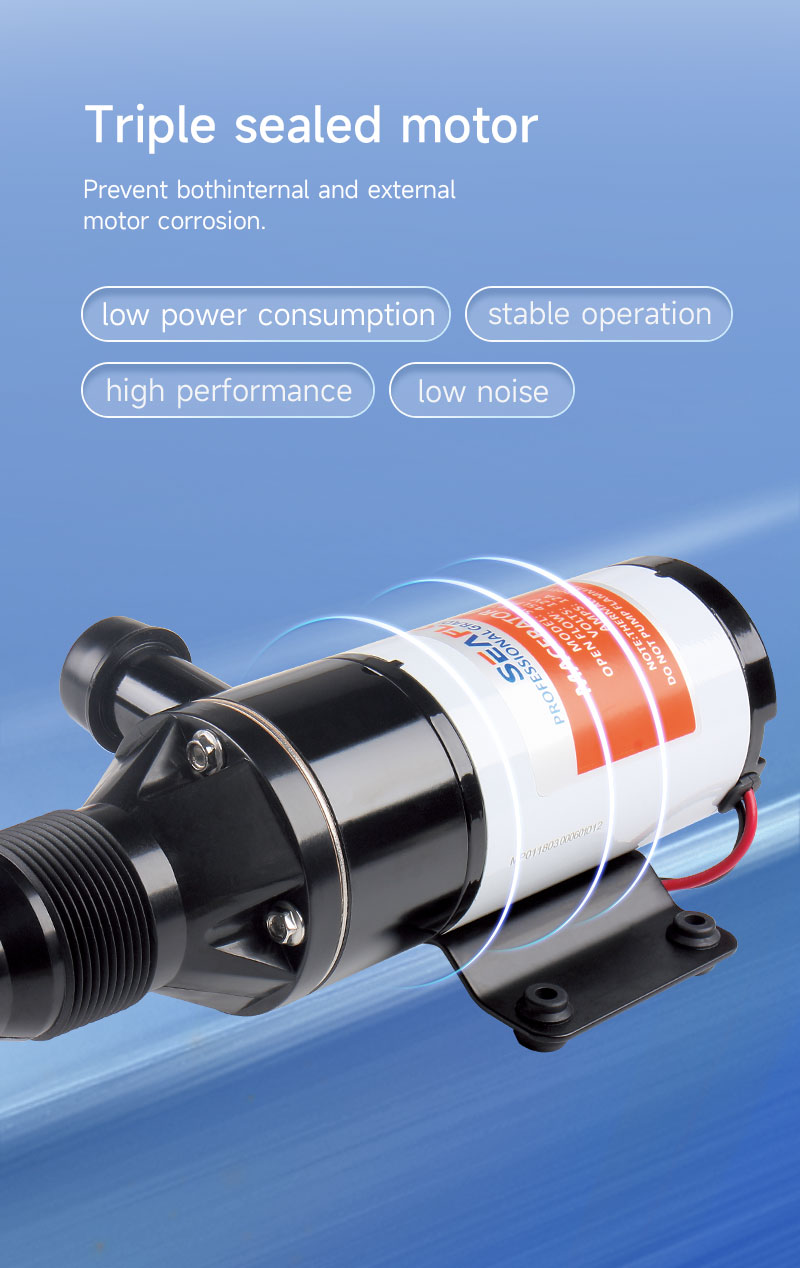

• Sealed motor
• Easy reach knob in case of clogs
• Run Dry for short periods of time

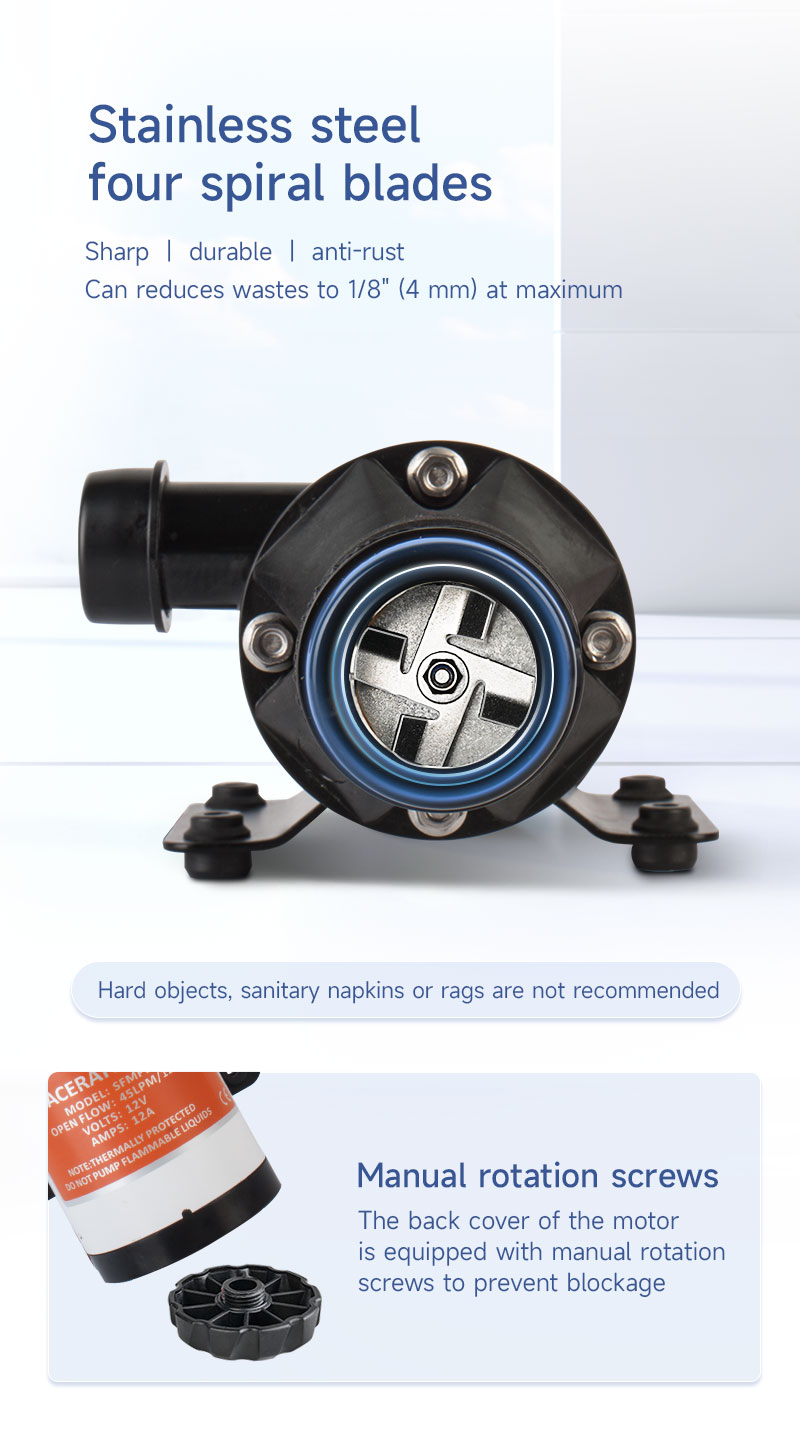

• New 4-blade design
• Thermally Protected
• Ignition Protected
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Ports | Max Draw(A) |
| SFMP1-120-01 | 12V | 12.0/45.0 | 1-1/2” MNPT 1" Hose Barb | 12.0 A |
| SFMP2-120-01 | 24V | 12.0/45.0 | 1-1/2” MNPT 1" Hose Barb | 6.0 A |
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 10.8 | 40.8 | 12.0 |
| 4 | 0.28 | 7.93 | 30.0 | 12.8 |
| 8 | 0.55 | 6.08 | 23.0 | 13.5 |
| 12 | 0.83 | 3.96 | 15.0 | 14.3 |
| 16 | 1.10 | 0 | 0 | 0 |
SHIPPING INFORMATION
Unit Weight | 4.56 lbs (2.07 kg) |
Selling Unit Size (L x W x H) | 13.78" x 5.12" x 4.33" (35.0 x 13.0 x 11.0 cm) |
Selling Unit Weight | 5.11 lbs (2.32 kg) |
Master Carton Size (L x W x H) | 24.02" x 13.31" x 9.92" (61 X 33.8 X 25.2 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 46.54 lbs (21.11 kg) |
Master Carton Volume | 0.052 m³ |
