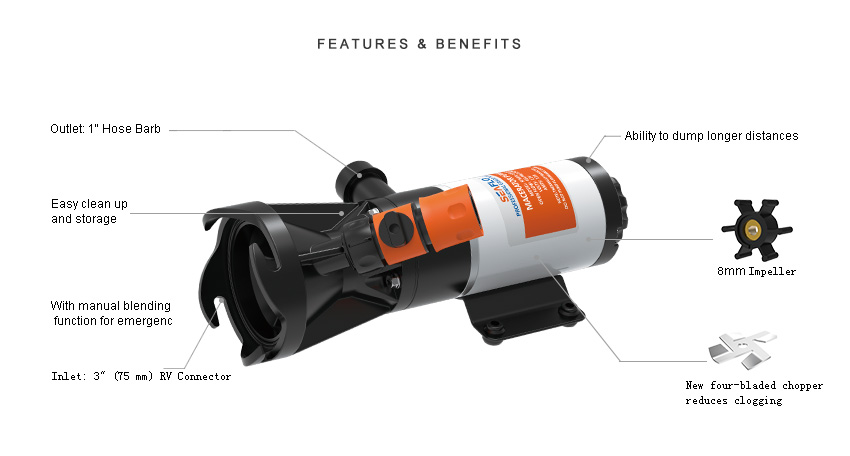

MORE FEATURES & BENEFITS
• Fresh water rinse capabilities

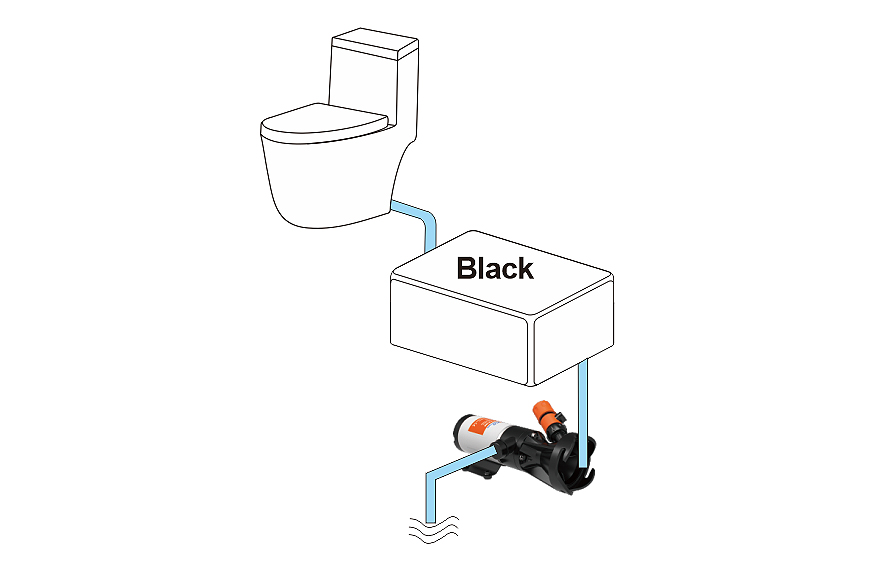

• Connects directly to the RV waste outlet
• Impeller can be loosed with an end back knob
• Ability to dump longer distances
• Easy clean up and storage
• New four blades for reducing clogging
• With manual blending function for emergency
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Ports | Max Draw(A) |
| SFMP1-120-02 | 12V | 12.0/45.0 | 3" (75 mm) RV Connector 1" Hose Barb | 12.0A |
| SFMP2-120-02 | 24V | 12.0/45.0 | 3" (75 mm) RV Connector 1" Hose Barb | 7.0A |
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 10.0 | 41.0 | 12.2 |
| 4 | 0.28 | 8.00 | 30.3 | 13.1 |
| 8 | 0.55 | 6.13 | 23.2 | 13.8 |
| 12 | 0.83 | 4.07 | 15.4 | 14.5 |
| 16 | 1.10 | 0 | 0 | 0 |
SHIPPING INFORMATION
Unit Weight | 4.85 lbs (2.2 kg) |
Selling Unit Size (L x W x H) | 11.59" x 3.78" x 5.79" (29.45 x 9.6 x 14.7 cm) |
Selling Unit Weight | 5.07 lbs (2.3 kg) |
Master Carton Size (L x W x H) | 24.02" x 13.31" x 9.92 " (61 x 33.8 x 25.2 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 52.69 lbs (23.9 kg) |
Master Carton Volume | 0.052 m³ |
