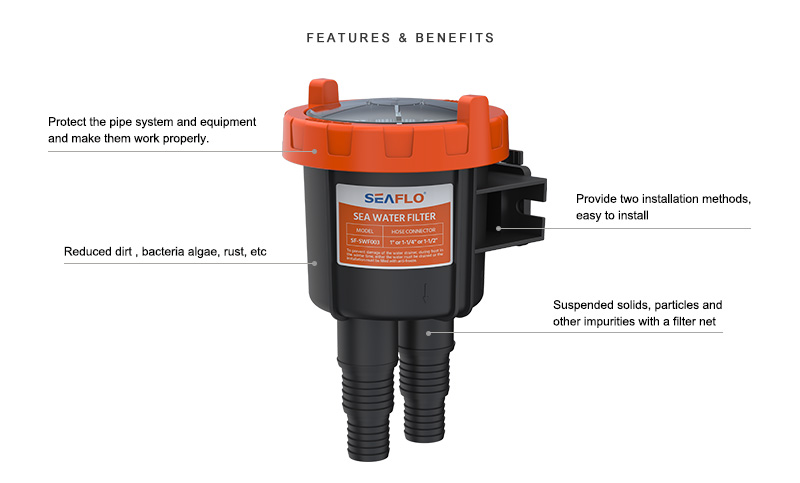

FEATURES & BENEFITS
• Easy inspection without dismantling
• Robust and durable filter
• Easily removable cover
• Also ideal for use with shower drain pumps
• Provide two installation methods, easy to install

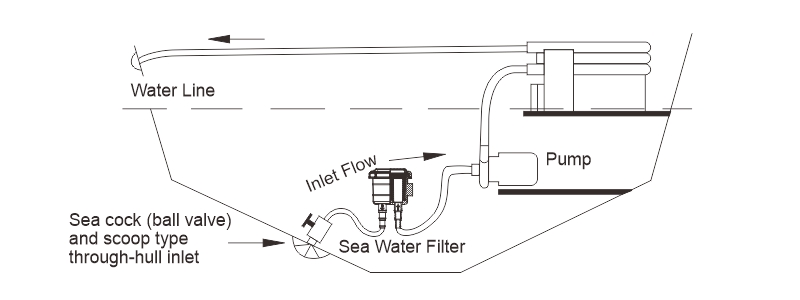

Application

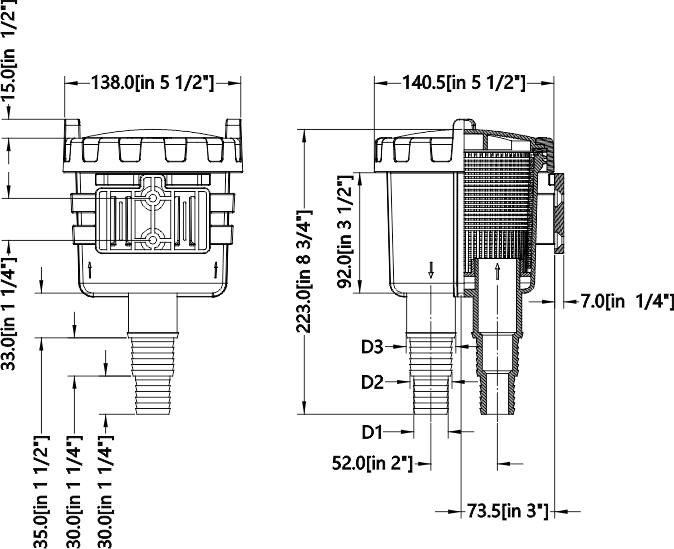

Dimensions
STANDARD CONFIGURATIONS
| Model | Output Size | Recommended Hose Size | Recommended Input |
| SF-SWF003 | D1: 25.4 mm(1") | 25mm | 91 L/min. 24 GPM US |
| D2: 31.8 mm(1-1/4") | 32mm | 143 L/min. 37.8 GPM US | |
| D3: 38.1 mm(1-1/2") | 38mm | 200 L/min.52.9 GPM US |
SHIPPING INFORMATION
Selling Unit Size (L x W x H) | 5.51" x 5.59" x 5.59" (14.0 x 14.20 x 14.20 cm) |
Selling Unit Weight | 1.80 lbs (0.821 kg) |
Master Carton Size (L x W x H) | 23.22" x 17.32" x 20.27" (59.0 x 44.0 x 51.5 cm) |
Master Carton Qty | 24 pcs |
Master Carton Weight | 43.43 lbs (19.7 kg) |
Master Carton Volume | 0.134 m³ |
