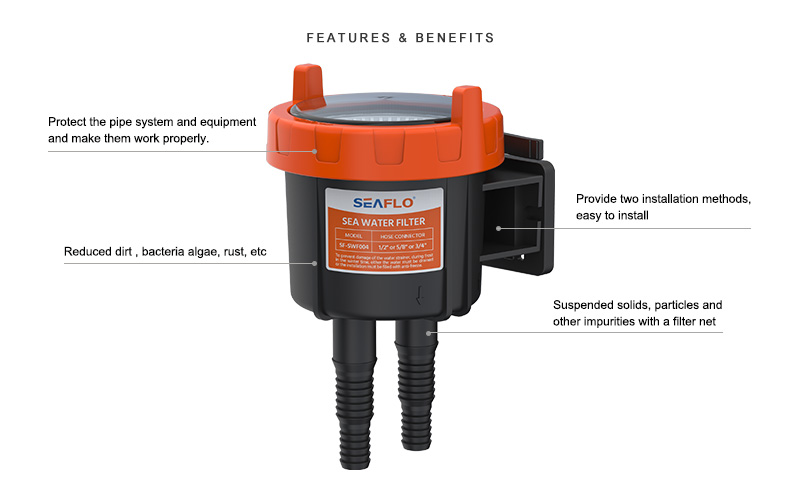

FEATURES & BENEFITS
• Easy inspection without dismantling
• Robust and durable filter
• Easily removable cover
• Also ideal for use with shower drain pumps
• Provide two installation methods, easy to install
Application

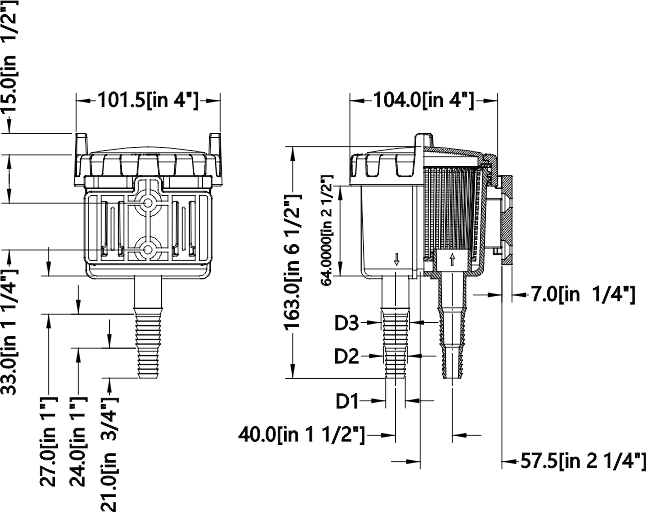

Dimensions
STANDARD CONFIGURATIONS
| Model | Output Size | Recommended Hose Size | Recommended Input |
| SF-SWF004 | D1: 12.7 mm(1/2") | 13mm | 23 L/min. 6 GPM US |
| D2: 15.9 mm(5/8") | 16mm | 35 L/min. 9 GPM US | |
| D3: 19.1 mm(3/4") | 19mm | 51 L/min. 13 GPM US |
SHIPPING INFORMATION
Selling Unit Size (L x W x H) | 4.13" x 4.13" x 7.16" (10.50 x 10.50 x 18.20 cm) |
Selling Unit Weight | 0.85 lbs (0.387 kg) |
Master Carton Size (L x W x H) | 21.25" x 12.99" x 14.76" (54.0 x 33.0 x 37.5 cm) |
Master Carton Qty | 30 pcs |
Master Carton Weight | 25.57 lbs (11.60 kg) |
Master Carton Volume | 0.067 m³ |
