FEATURES & BENEFITS
• ensures water cannot siphon over plumbing loops.
• Internal valve avoids need for external venting
• Molded in tough, corrosion-proof plastic.
• Available in three sizes for 1-1/2" (38mm), 1" (25mm) and 3/4" (19mm) hose.

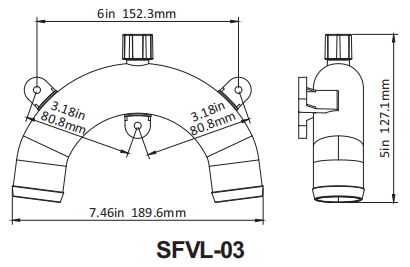

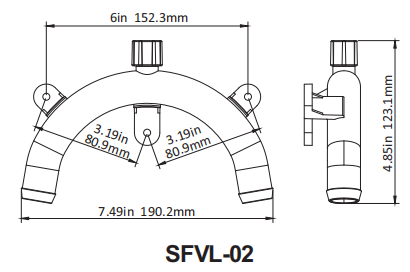

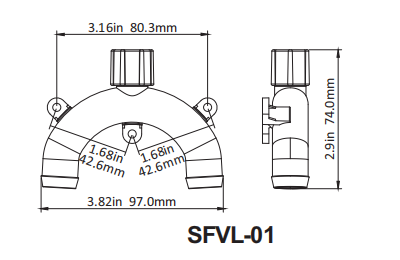

DIMENSION
STANDARD CONFIGURATIONS
| Model | Fitting |
| SFVL-01 | 3/4" (19mm) |
| SFVL-02 | 1" (25mm) |
| SFVL-03 | 1-1/2" (38mm) |
SHIPPING INFORMATION
SFVL-03
Master Carton Size (L x W x H) | 22.16''x 18.66''x 12.48'' (56.3 x 47.4 x 31.7 cm ) |
Master Carton Qty | 48 PCS |
Master Carton Weight | 25.35 lbs (11.5 kg) |
Master Carton Volume | 0.085 m³ |
SFVL-02
Master Carton Size (L x W x H) | 22.16''x 18.66''x 12.48'' (56.3 x 47.4 x 31.7 cm ) |
Master Carton Qty | 48 PCS |
Master Carton Weight | 18.73 lbs (8.5 kg) |
Master Carton Volume | 0.085 m³ |
SFVL-01
Master Carton Size (L x W x H) | 23.22''x 17.32''x 16.14'' (47.7 x 27.5 x 20 cm ) |
Master Carton Qty | 56 PCS |
Master Carton Weight | 9.47 lbs (4.3 kg) |
Master Carton Volume | 0.026 m³ |
