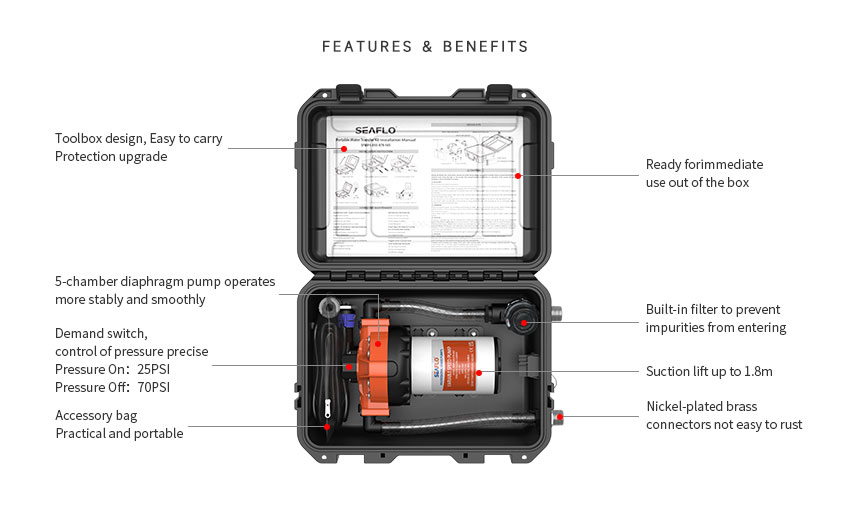

MORE FEATURES & BENEFITS

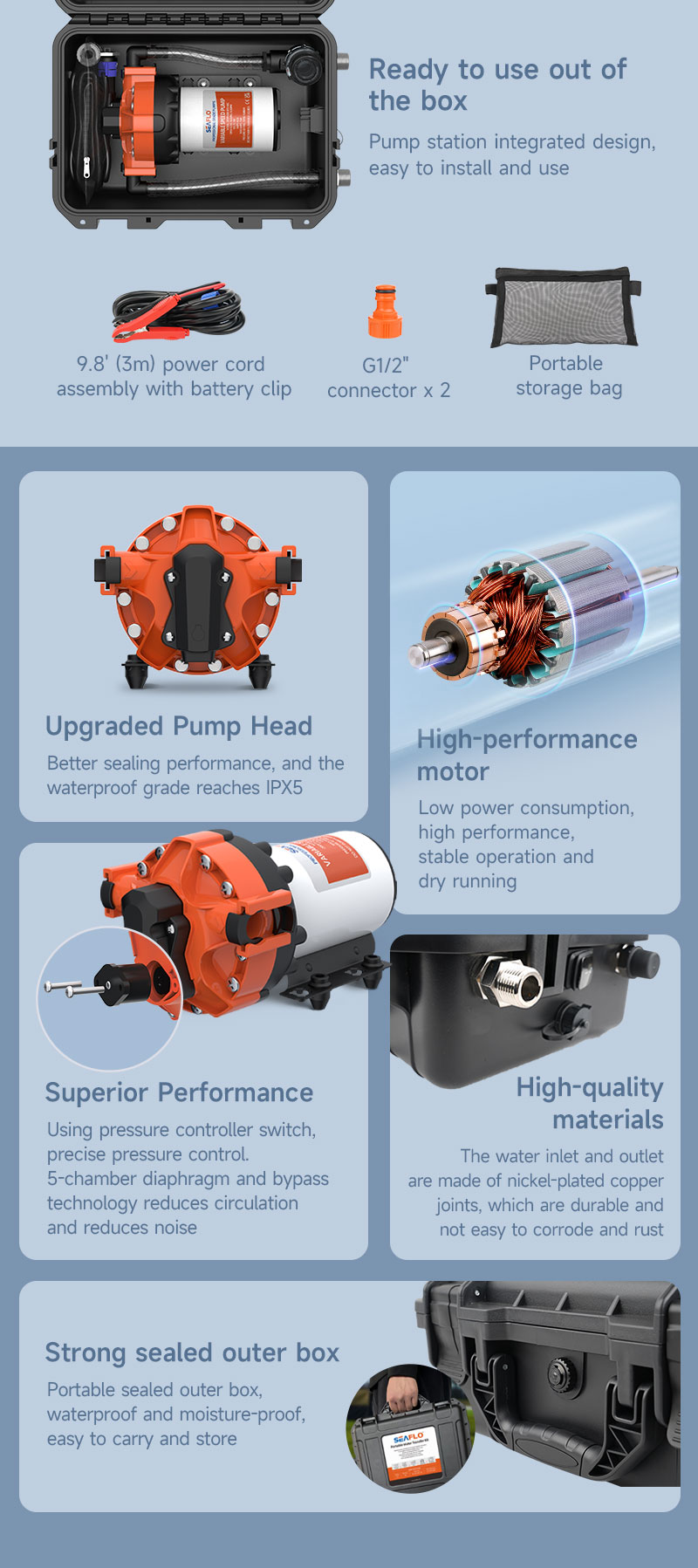

• Pump station integrated design, easy to use
• Advanced waterproof outer box，waterproof IPX6
• 5-chamber diaphragm and bypass technology
• High-power water pump, flow up to 5.0GPM(18.9LPM)
• Using pressure controller switch, precise pressure control,Pressure On：25PSI Pressure Off：70PSI
• Capable of dry running,long service life

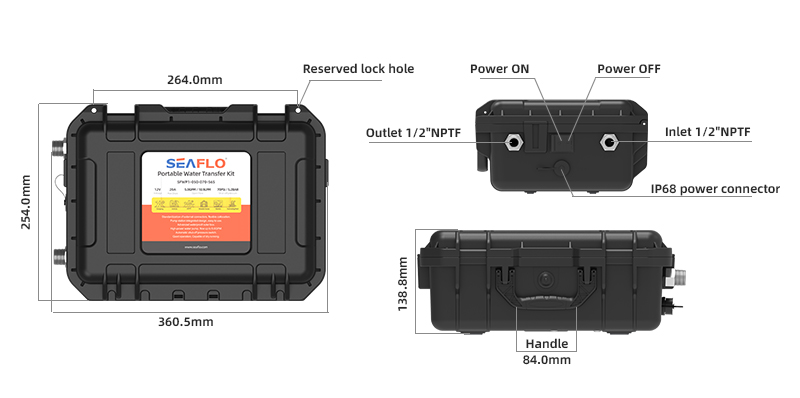

• 1/2" NPTF can be directly connected to the pipe or used with a quick coupling
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Shut-off Pressure | Max Draw |
| SFWP1-050-070-56S | 12V | 5.0/18.9 | 70/4.8 | 20.0A |
PRESSURE | FLOW | CURRENT | ||
PSI | BAR | GPM | LPM | AMPS |
0 | 0 | 4.76 | 18 | 6.6 |
10 | 0.69 | 4.39 | 16.6 | 8.2 |
20 | 1.38 | 3.59 | 13.6 | 11 |
30 | 2.07 | 3.41 | 12.9 | 12.6 |
40 | 2.76 | 3.12 | 11.8 | 14.2 |
50 | 3.45 | 2.85 | 10.8 | 16.3 |
60 | 4.14 | 2.59 | 9.8 | 17.8 |
70 | 4.83 | 2.38 | 9 | 19.7 |
SHIPPING INFORMATION
Unit Weight | 9.92lbs (4.5 kg) |
Selling Unit Size (L x W x H) | 14.17”x 5.91”x 10.63” (36.0X15.0X27.0 cm) |
Selling Unit Weight | 10.36lbs (4.7 kg) |
Master Carton Size (L x W x H) | |
Master Carton Qty | |
Master Carton Weight | |
Master Carton Volume |
