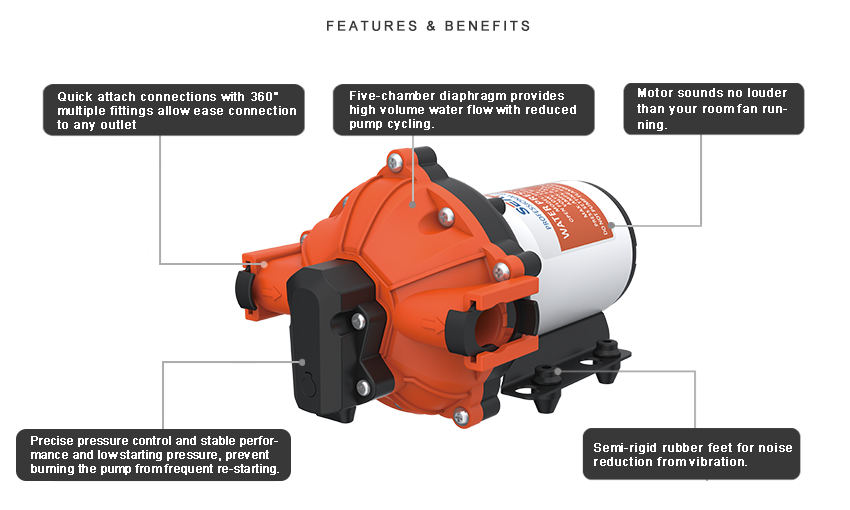

MORE FEATURES & BENEFITS
• Up to 5.0 GPM
• Continuous Duty
• Can supply up to 4 fixtures
• Quick connect fittings
• Very quiet operation
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Can be used for Fresh & Salt Water
• Heavy-Duty Motor
• 16 AWG, 9"(22.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-040-060-52A | 12V | 4.0 / 15.1 | 13.0A | 60 / 4.2 |
| SFDP2-040-060-52A | 24V | 4.0 / 15.1 | 7.0A | 60 / 4.2 |
| SFDP1-050-060-52A | 12V | 5.0 / 18.9 | 17.0A | 60 / 4.2 |
| SFDP2-050-060-52A | 24V | 5.0 / 18.9 | 9.0A | 60 / 4.2 |
| SFDP1-050-070-52A | 12V | 5.0 / 18.9 | 18.0A | 70/ 4.8 |
| SFDP2-050-070-52A | 24V | 5.0 / 18.9 | 10.0A | 70/ 4.8 |
SHIPPING INFORMATION
Unit Weight | |
Selling Unit Size (L x W x H) | |
Selling Unit Weight | |
Master Carton Size (L x W x H) | |
Master Carton Qty | |
Master Carton Weight | |
Master Carton Volume |
