FEATURES & BENEFITS

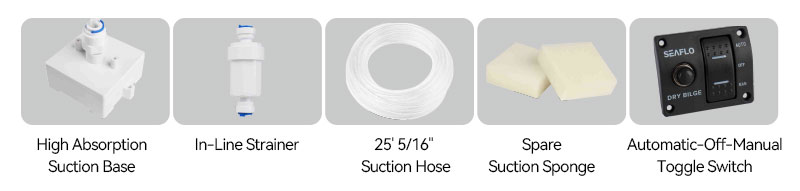

• 25' Self-priming suction allows the system to be remotely mounted.
•User program mable timer allows the user to activate the system asmuch, or as little, as needed.
• Thin (5/16") suction hose allows for easy bends and fits into tight spaces.· Quick-connect fittings allow for simple plumbing installation.
• High absorption suction base ensures a dry bilge.

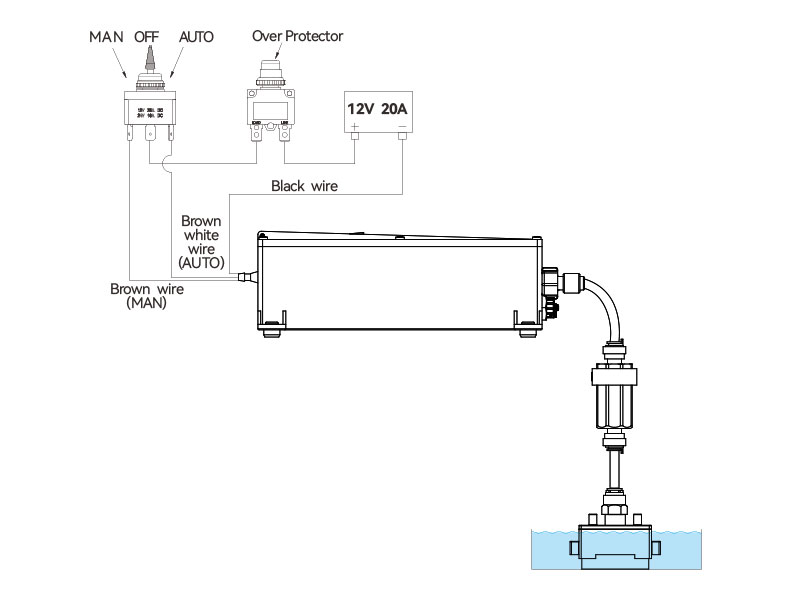

• Automatic-Off-Manualtoggle switch allows user to activate the system manually in addition to automatically.
• lgnition Protected- lSO 8846 Marine / SAE J1171 Marine.
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Max Draw | Open Flow （GPM/LPM)/ | Inlet Dia | Outlet Dia |
SFDBS1-01 | 12V | 5.5A | 0.3/1 | 5/16" | 1/2" Barb |
SFDBS2-01 | 24V | 2.75A | 0.3/1 | 5/16" | 1/2" Barb |
SHIPPING INFORMATION
Unit Weight | |
Selling Unit Size (L x W x H) | |
Selling Unit Weight | |
Master Carton Size (L x W x H) | |
Master Carton Qty | |
Master Carton Weight | |
Master Carton Volume |
