MORE FEATURES & BENEFITS
• High strength material
• Ultra-durable
• Anti-corrosion

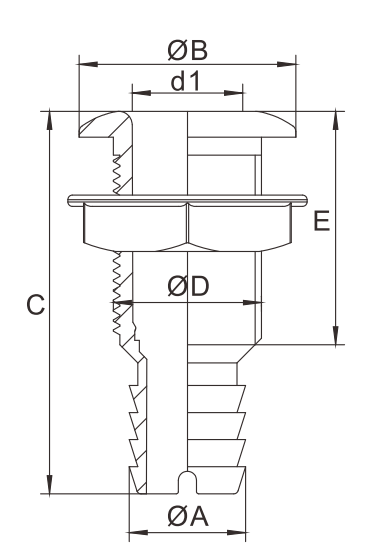

STANDARD CONFIGURATIONS
| Model | Size inch | A (mm） | B（mm） | C（mm） | D ('') | E (mm) | d1（mm） | Material | Color |
SFTH1-0625-01 | 5/8” | 16 | 48 | 85 | 1” | 52 | 24.5 | PP+GF | White |
SFTH2-0625-01 | 5/8” | 16 | 48 | 85 | 1” | 52 | 24.5 | nylon+GF | Black |
SFTH1-0750-01 | 3/4” | 19.4 | 48 | 85 | 1” | 52 | 24.5 | PP+GF | White |
SFTH2-0750-01 | 3/4” | 19.4 | 48 | 85 | 1” | 52 | 24.5 | nylon+GF | Black |
SFTH1-1000-01 | 1” | 25.8 | 48 | 85 | 1” | 52 | 24.5 | PP+GF | White |
SFTH2-1000-01 | 1” | 25.8 | 48 | 85 | 1” | 52 | 24.5 | nylon+GF | Black |
SFTH1-1125-01 | 1”1/8 | 29 | 48 | 85 | 1” | 52 | 24.5 | PP+GF | White |
SFTH2-1125-01 | 1”1/8 | 29 | 48 | 85 | 1” | 52 | 24.5 | nylon+GF | Black |
SFTH1-1250-01 | 1”1/4 | 32.2 | 60 | 95 | 1”1/4 | 55 | 32 | PP+GF | White |
SFTH2-1250-01 | 1”1/4 | 32.2 | 60 | 95 | 1”1/4 | 55 | 32 | nylon+GF | Black |
SFTH1-1500-01 | 1”1/2 | 38.5 | 60 | 95 | 1”1/4 | 55 | 32 | PP+GF | White |
SFTH2-1500-01 | 1”1/2 | 38.5 | 60 | 95 | 1”1/4 | 55 | 32 | nylon+GF | Black |
SFTH1-2000-01 | 2” | 51.3 | 82.5 | 130 | 2” | 80 | 49 | PP+GF | White |
SFTH2-2000-01 | 2” | 51.3 | 82.5 | 130 | 2” | 80 | 49 | nylon+GF | Black |
