MORE FEATURES & BENEFITS
• Good sealing
• Ultra-durable
• Widely used

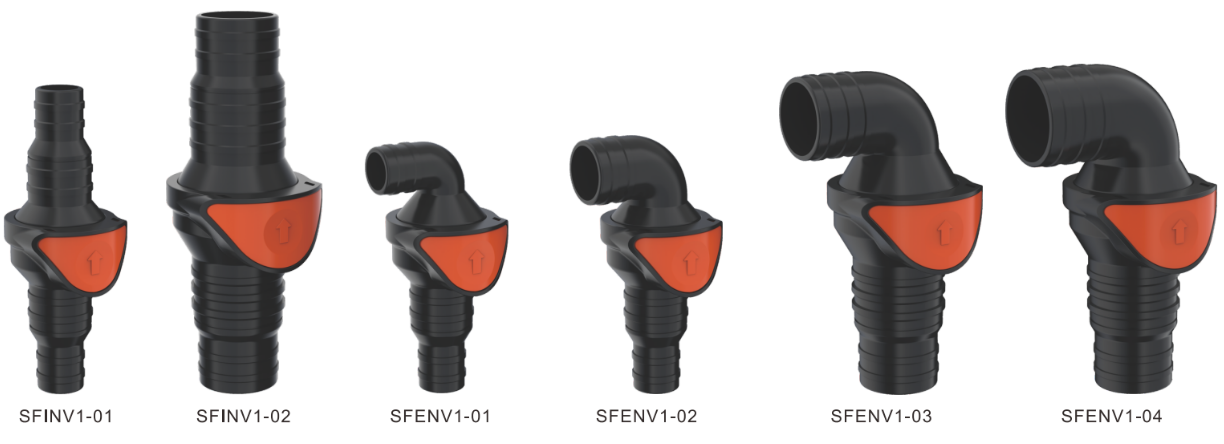

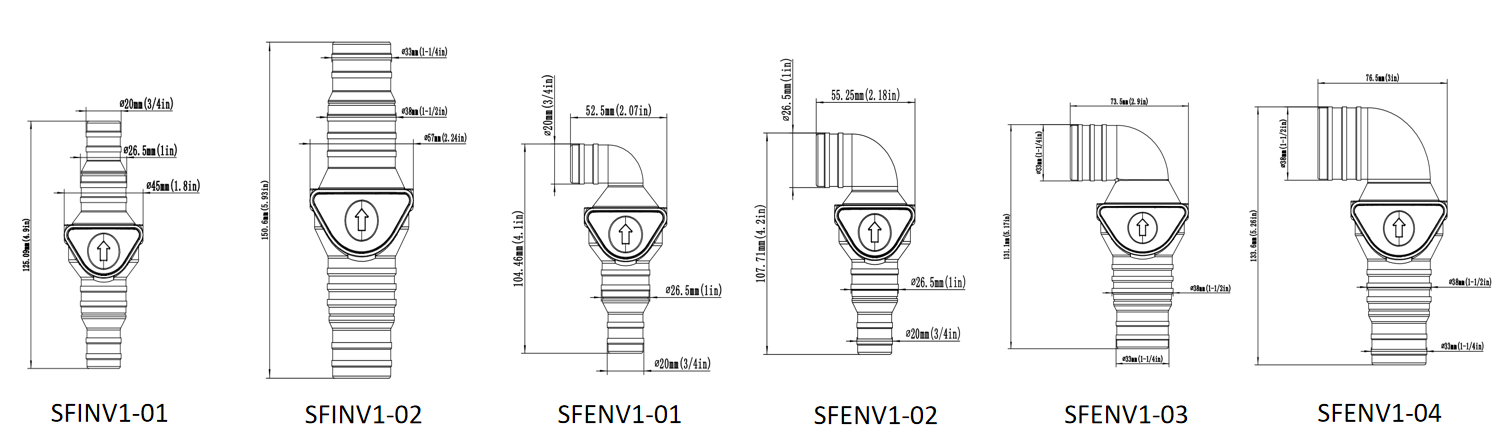

STANDARD CONFIGURATIONS
| Model | Hose inlet | Hose outlet | Angle | Size |
SFINV1-Z100-01 | 3/4"-1"(20-26.5mm) | 3/4"-1"(20-26.5mm) | In-line | 125*45*49.6 4.92*1.77*1.95(in) |
SFINV1-Z150-01 | 1-1/4"-1½"(33-38mm) | 1-1/4"-1½"(20-26.5mm) | In-line | 150.6*57*62.1 5.93*2.24*2.44(in) |
SFENV1-W075-01 | 3/4"-1"(20-26.5mm) | 3/4"(20mm) | 90° | 104.5*45*52.5 4.11*1.77*2.07(in) |
SFENV1-W100-01 | 3/4"-1"(20-26.5mm) | 1"(26.5mm) | 90° | 107.7*45*55.25 4.24*1.77*2.18(in) |
SFENV1-W125-01 | 1-1/4"-1½"(33-38mm) | 1-1/4"(33mm) | 90° | 131.1*57*73.5 5.16*2.24*2.89(in) |
SFENV1-W150-01 | 1-1/4"-1½"(33-38mm) | 1½"（38mm） | 90° | 133.6*57*76.5 5.26*2.24*3.01(in) |
