MORE FEATURES & BENEFITS
• Highly durable
• Excellent tensile properties
• Easy installation
• Wide range of applications

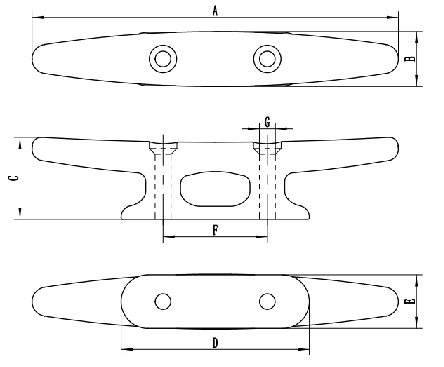

STANDARD CONFIGURATIONS
| Model | Size inch | A(mm） | B（mm） | C（mm） | D (mm) | E (mm) | F（mm） | G (mm) |
SFNC-01 | 3" | 76 | 13 | 21 | 47 | 13 | 28 | φ4.5 |
SFNC-02 | 4" | 101 | 16 | 25 | 50 | 16 | 30 | Φ4.5 |
SFNC-03 | 5" | 127 | 19 | 28 | 65 | 18.5 | 36 | Φ5.5 |
SFNC-04 | 6" | 152 | 23 | 36 | 73 | 23 | 42 | Φ6.8 |
SFNC-05 | 8" | 203 | 26.5 | 43 | 100 | 26 | 49 | Φ6.8 |
