MORE FEATURES & BENEFITS
- IP67 waterproof design, weatherproof and completely sealed, safe and reliable to use;
- Visible distance 2 nautical miles;
- Simple installation, no need complicated tools, convenient for using;
- Made of high-quality PC material, impact resistant and seawater corrosion resistant;
- High brightness, strong penetration,which greatly improves the safety of navigation;
- Advanced manufacturing, long duration and low energy consumption;
- Super lightweight and convenient;
- Suitable for most yachts, fishing boats, speed boats and other vessels;
STANDARD CONFIGURATIONS

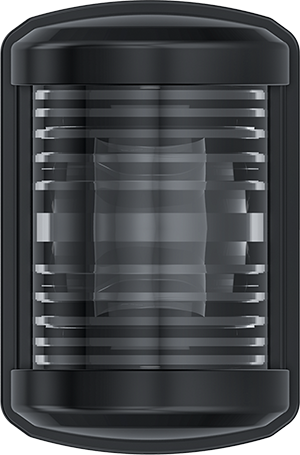

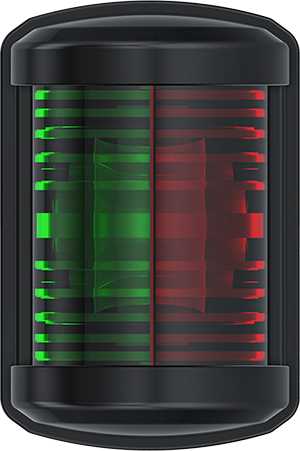

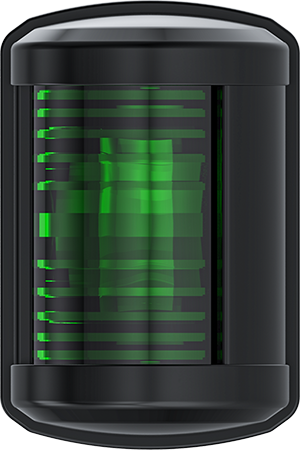

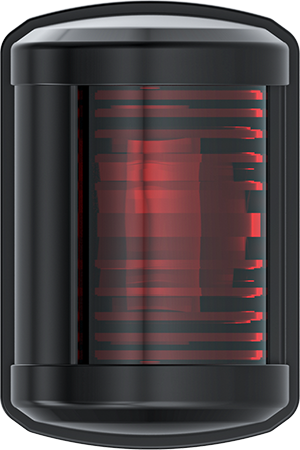

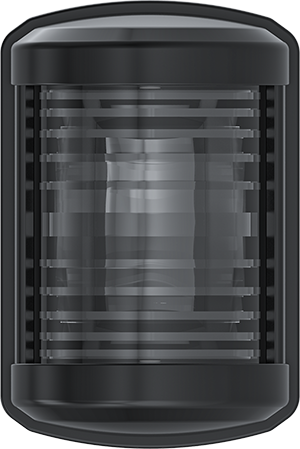

Square Navigation Light - Mini
Product |  |  |  |  |  |
Name | Starboard light | Port light | Masthead light | Bi-color light | Stern light |
Model | SFNL1-01RB | SFNL1-01LB | SFNL1-01MB | SFNL1-01BB | SFNL1-01SB |
Voltage & Power | 12VDC 1W | ||||
Visibility | 2NM | ||||
Protection class | IP67 | ||||
Level arc | 112.5° | 112.5° | 225° | 225° | 135° |
Color | Green | Red | White | Red&Green | White |
Function | for hull starboard side signal light | for hull port side signal light | for ship roof signal light | for use on the front end of boats,replaces port and starboard lights | for stern signal light |
Material | Engineering plastic | ||||
Size | 64.5*43*35.5mm | ||||

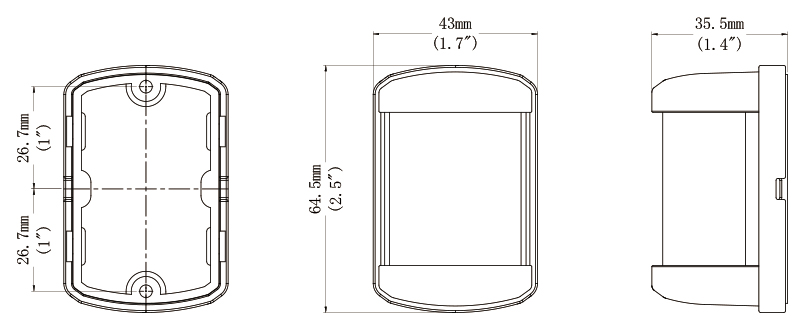

DIMENSIONS
